BOLTS, NUTS & WASHERS

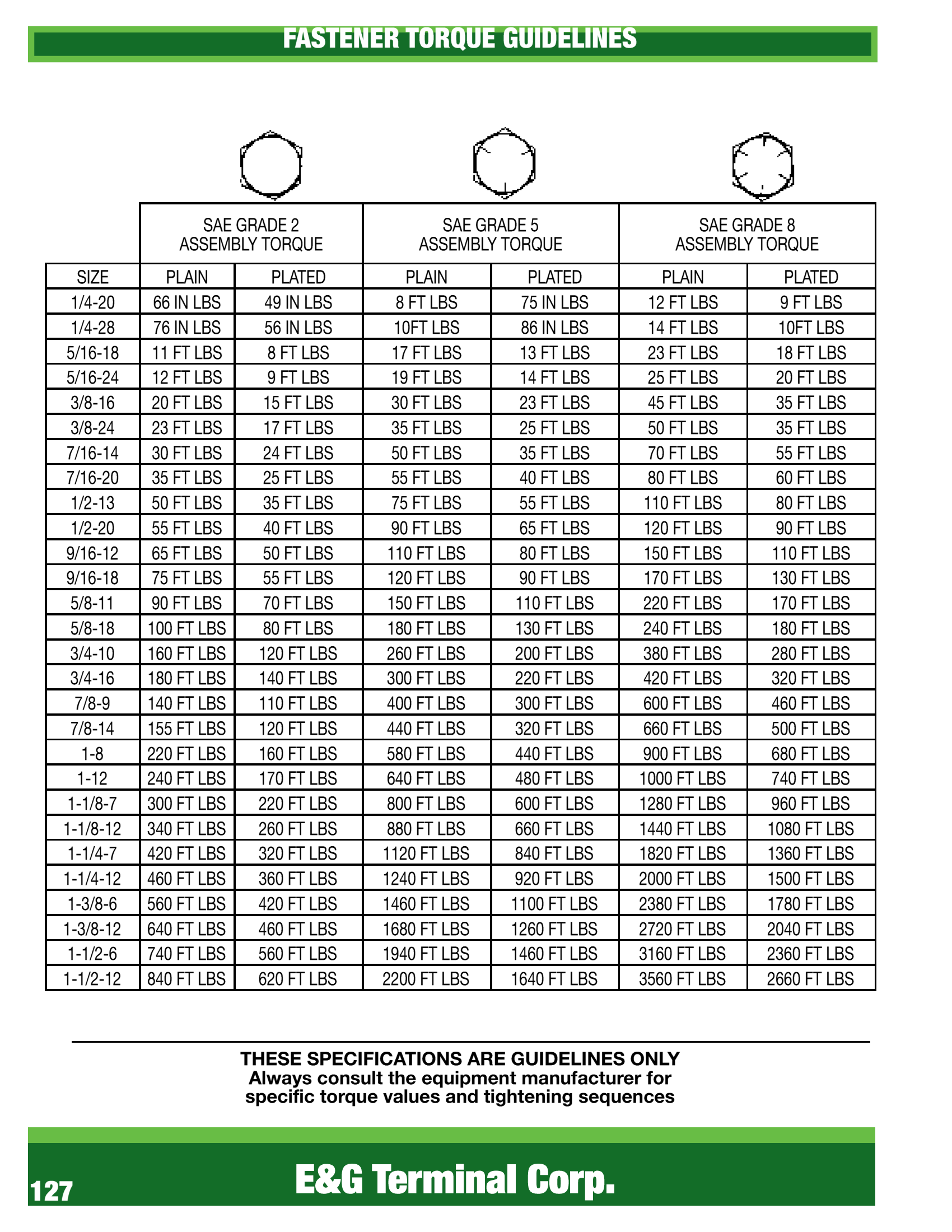

FASTENER TORQUE GUIDELINES ASSEMBLY TORQUE SIZE PLAIN PLATED PLAIN PLATED PLAIN PLATED 1/4-20 66 IN LBS 49 IN LBS 8 FT LBS 75 IN LBS 12 FT LBS 9 FT LBS 1/4-28 76 IN LBS 56 IN LBS 10FT LBS 86 IN LBS 14 FT LBS 10FT LBS 5/16-18 11 FT LBS 8 FT LBS 17 FT LBS 13 FT LBS 23 FT LBS 18 FT LBS 5/16-24 12 FT LBS 9 FT LBS 19 FT LBS 14 FT LBS 25 FT LBS 20 FT LBS 3/8-16 20 FT LBS 15 FT LBS 30 FT LBS 23 FT LBS 45 FT LBS 35 FT LBS 3/8-24 23 FT LBS 17 FT LBS 35 FT LBS 25 FT LBS 50 FT LBS 35 FT LBS 7/16-14 30 FT LBS 24 FT LBS 50 FT LBS 35 FT LBS 70 FT LBS 55 FT LBS 7/16-20 35 FT LBS 25 FT LBS 55 FT LBS 40 FT LBS 80 FT LBS 60 FT LBS 1/2-13 50 FT LBS 35 FT LBS 75 FT LBS 55 FT LBS 110 FT LBS 80 FT LBS 1/2-20 55 FT LBS 40 FT LBS 90 FT LBS 65 FT LBS 120 FT LBS 90 FT LBS 9/16-12 65 FT LBS 50 FT LBS 110 FT LBS 80 FT LBS 150 FT LBS 110 FT LBS 9/16-18 75 FT LBS 55 FT LBS 120 FT LBS 90 FT LBS 170 FT LBS 130 FT LBS 5/8-11 90 FT LBS 70 FT LBS 150 FT LBS 110 FT LBS 220 FT LBS 170 FT LBS 5/8-18 100 FT LBS 80 FT LBS 180 FT LBS 130 FT LBS 240 FT LBS 180 FT LBS 3/4-10 160 FT LBS 120 FT LBS 260 FT LBS 200 FT LBS 380 FT LBS 280 FT LBS 3/4-16 180 FT LBS 140 FT LBS 300 FT LBS 220 FT LBS 420 FT LBS 320 FT LBS 7/8-9 140 FT LBS 110 FT LBS 400 FT LBS 300 FT LBS 600 FT LBS 460 FT LBS 7/8-14 155 FT LBS 120 FT LBS 440 FT LBS 320 FT LBS 660 FT LBS 500 FT LBS 1-8 220 FT LBS 160 FT LBS 580 FT LBS 440 FT LBS 900 FT LBS 680 FT LBS 1-12 240 FT LBS 170 FT LBS 640 FT LBS 480 FT LBS 1000 FT LBS 740 FT LBS 1-1/8-7 300 FT LBS 220 FT LBS 800 FT LBS 600 FT LBS 1280 FT LBS 960 FT LBS 1-1/8-12 340 FT LBS 260 FT LBS 880 FT LBS 660 FT LBS 1440 FT LBS 1080 FT LBS 1-1/4-7 420 FT LBS 320 FT LBS 1120 FT LBS 840 FT LBS 1820 FT LBS 1360 FT LBS 1-1/4-12 460 FT LBS 360 FT LBS 1240 FT LBS 920 FT LBS 2000 FT LBS 1500 FT LBS 1-3/8-6 560 FT LBS 420 FT LBS 1460 FT LBS 1100 FT LBS 2380 FT LBS 1780 FT LBS 1-3/8-12 640 FT LBS 460 FT LBS 1680 FT LBS 1260 FT LBS 2720 FT LBS 2040 FT LBS 1-1/2-6 740 FT LBS 560 FT LBS 1940 FT LBS 1460 FT LBS 3160 FT LBS 2360 FT LBS 1-1/2-12 840 FT LBS 620 FT LBS 2200 FT LBS 1640 FT LBS 3560 FT LBS 2660 FT LBS Always consult the equipment manufacturer for SCREW DIAMETER AND THREAD PITCH 1/4-20 5/16-18 3/8-16 7/16-14 1/2-13 9/16-12 5/8-11 3/4-10 7/8-9 1-8 1/2 010-3816 010-4016 010-4216 3/4 010-3824 010-4024 010-4224 010-4424 010-4624 1 010-3832 010-4032 010-4232 010-4432 010-4632 010-4832 010-5032 010-5232 1-1/4 010-3834 010-4034 010-4234 010-4434 010-4634 010-4834 010-5034 010-5234 1-1/2 010-3836 010-4036 010-4236 010-4436 010-4636 010-4836 010-5036 010-5236 010-5636 1-3/4 010-3838 010-4038 010-4238 010-4438 010-4638 010-5038 010-5238 2 010-3840 010-4040 010-4240 010-4440 010-4640 010-4840 010-5040 010-5240 010-5440 010-5640 2-1/4 010-3841 010-4041 010-4241 010-4441 010-4641 010-5041 2-1/2 010-3842 010-4042 010-4242 010-4442 010-4642 010-4842 010-5042 010-5242 010-5442 010-5642 2-3/4 010-3843 010-4043 010-4243 010-4443 010-4643 010-5043 3 010-3844 010-4044 010-4244 010-4444 010-4644 010-4844 010-5044 010-5244 010-5444 010-5644 3-1/4 010-4245 010-4645 010-5045 3-1/2 010-3846 010-4046 010-4246 010-4446 010-4646 010-4846 010-5046 010-5246 010-5446 010-5646 4 010-3848 010-4048 010-4248 010-4448 010-4648 010-4848 010-5048 010-5248 010-5448 010-5648 4-1/2 010-3850 010-4050 010-4250 010-4450 010-4650 010-5050 010-5250 010-5450 010-5650 5 010-3852 010-4052 010-4252 010-4452 010-4652 010-4852 010-5052 010-5252 010-5452 010-5652 5-1/2 010-3853 010-4053 010-4253 010-4453 010-4653 010-5053 010-5253 010-5453 010-5653 6 010-3854 010-4054 010-4254 010-4454 010-4654 010-5054 010-5254 010-5454 010-5654 GRADE 5 HEX HEAD TAP BOLTS FULLY THREADED ZINC PLATED IMPORTED 5/16-18 3/8-16 1/2-13 1-1/2 016-4036 2 016-4040 016-4240 016-4640 2-1/2 016-4042 016-4242 016-4642 3 016-4044 016-4244 016-4644 3-1/2 016-4046 016-4246 016-4646 4 016-4048 016-4248 016-4648 5 016-4252 016-4652 6 016-4254 016-4654 GRADE 5 USS COARSE THREAD HEX CAP SCREWS, ZINC PLATED Grade 5 SAE Fine Thread Hex Cap Screws Have Been Discontinued And Superceded By Grade 8 SAE Fine Thread Hex Cap Screws 129 E&G Terminal Corp. DIAMETER AND THREAD PITCH 1/2 020-3816 020-4016 020-4216 3/4 020-3824 020-4024 020-4224 020-4624 1 020-3832 020-4032 020-4232 020-4432 020-4632 020-5032 1-1/4 020-3834 020-4034 020-4234 020-4434 020-4634 020-5034 020-5234 1-1/2 020-3836 020-4036 020-4236 020-4436 020-4636 020-4836 020-5036 020-5236 1-3/4 020-3838 020-4038 020-4238 020-4438 020-4638 020-4838 020-5038 020-5238 2 020-3840 020-4040 020-4240 020-4440 020-4640 020-4840 020-5040 020-5240 020-5440 020-5640 2-1/4 020-3841 020-4041 020-4241 020-4441 020-4641 020-5041 020-5241 020-5441 020-5641 2-1/2 020-3842 020-4042 020-4242 020-4442 020-4642 020-4842 020-5042 020-5242 020-5442 020-5642 2-3/4 020-3843 020-4243 020-4643 020-5043 020-5243 3 020-3844 020-4044 020-4244 020-4444 020-4644 020-4844 020-5044 020-5244 020-5444 020-5644 3-1/2 020-3846 020-4046 020-4246 020-4446 020-4646 020-4846 020-5046 020-5246 020-5446 020-5646 4 020-3848 020-4048 020-4248 020-4448 020-4648 020-4848 020-5048 020-5248 020-5448 020-5648 4-1/2 020-3850 020-4050 020-4250 020-4450 020-4650 020-4850 020-5050 020-5250 020-5450 020-5650 5 020-3852 020-4052 020-4252 020-4452 020-4652 020-4852 020-5052 020-5252 020-5452 020-5652 5-1/2 020-3853 020-4053 020-4253 020-4453 020-4653 020-4853 020-5053 020-5253 020-5453 020-5653 6 020-3854 020-4054 020-4254 020-4454 020-4654 020-4854 020-5054 020-5254 020-5454 020-5654 6-1/2 020-4655 020-5055 020-5255 020-5455 7 020-4056 020-4256 020-4456 020-4656 020-5056 020-5256 020-5456 020-5656 7-1/2 020-4657 020-5057 020-5257 020-5457 8 020-4458 020-4658 020-5058 020-5258 020-5458 020-5658 9 020-4660 020-5060 020-5260 020-5460 020-5660 10 020-4662 020-5062 020-5262 020-5462 020-5662 CALL e&g FOR LARGER DIAMETERS AND S GRADE 8 USS COARSE THREAD HEX CAP SCREWS, YELLOW ZINC 1/4-28 5/16-24 3/8-24 7/16-20 1/2-20 9/16-18 5/8-18 3/4-16 7/8-14 1-14 3/4 020-3924 020-4124 020-4324 020-4724 1 020-3932 020-4132 020-4332 020-4532 020-4732 020-5132 1-1/4 020-3934 020-4134 020-4334 020-4534 020-4734 020-4934 020-5134 1-1/2 020-3936 020-4136 020-4336 020-4536 020-4736 020-4936 020-5136 020-5336 1-3/4 020-4138 020-4338 020-4738 020-5138 020-5338 2 020-3940 020-4140 020-4340 020-4540 020-4740 020-4940 020-5140 020-5340 020-5540 020-5740 2-1/4 020-3941 020-4341 020-4741 020-5141 020-5341 020-5741 2-1/2 020-3942 020-4142 020-4342 020-4542 020-4742 020-4942 020-5142 020-5342 020-5742 2-3/4 020-4743 020-5143 020-5343 3 020-3944 020-4144 020-4344 020-4544 020-4744 020-4944 020-5144 020-5344 020-5544 020-5744 3-1/2 020-3946 020-4146 020-4346 020-4546 020-4746 020-4946 020-5146 020-5346 020-5546 020-5746 4 020-3948 020-4148 020-4348 020-4548 020-4748 020-4948 020-5148 020-5348 020-5548 020-5748 4-1/2 020-4750 020-5150 020-5350 020-5550 020-5750 5 020-4752 020-4952 020-5152 020-5352 020-5552 020-5752 5-1/2 020-4753 020-4953 020-5153 020-5353 020-5553 020-5753 6 020-4554 020-4754 020-4954 020-5154 020-5354 020-5554 020-5754 6-1/2 020-4755 020-5155 7 020-4756 020-5156 020-5356 020-5556 020-5756 8 020-4758 020-5158 020-5358 020-5558 020-5758 9 020-5160 020-5360 020-5560 020-5760 GRADE 8 SAE FINE THREAD HEX CAP SCREWS, YELLOW ZINC 131 E&G Terminal Corp. GRADE 8 ALLOY FLANGE BOLTS Manufactured to SAE J-429 Specifications Hex Flange COARSE THREAD Black Phosphate DIAMETER OF SCREW 3/8-16 1/2-13 5/8-11 3/4-10 1 012-4232 1-1/4 012-4234 012-4634 1-1/2 012-4236 012-4636 012-5036 1-3/4 012-4238 012-4638 012-5038 012-5238 2 012-4240 012-4640 012-5040 012-5240 2-1/4 012-4641 012-5041 012-5241 2-1/2 012-4642 012-5042 012-5242 2-3/4 012-4643 012-5043 3 012-4644 012-5044 012-5244 3-1/2 012-4646 012-5046 012-5246 3-3/4 012-4647 4 012-4648 012-5048 012-5248 GRADE GT STOVER TYPE FLANGE LOCKNUT 026-42 3/8-16 026-46 1/2-13 026-50 5/8-11 026-52 3/4-10 SERRATED HEX FLANGE SCREWS GRADE 5 EQUIVALENT Zinc Plated OF 1/4-20 5/16-18 3/8-16 1/2 014-3816 014-4016 3/4 014-3824 014-4024 014-4224 1 014-3832 014-4032 014-4232 SERRATED HEX FLANGE NUTS 026-301 8-32 026-341 10-24 026-351 10-32 026-381 1/4-20 026-401 5/16 -18 026-421 3/8 -16 026-441 7/16-14 026-461 1/2-13 026-501 5/8-11 026-521 3/4-10 FLANGE BOLTs AND NUTS Commonly Used HEX NUTS (USS ONLY) USS STD PKG 1/4 030-38 100 5/16 030-40 100 3/8 030-42 100 7/16 030-44 100 1/2 030-46 100 9/16 030-48 50 5/8 030-50 50 3/4 030-52 20 7/8 030-54 10 1 030-56 10 1-1/8 030-58 EACH 1-1/4 030-60 EACH 1-3/8 030-62 EACH 1-1/2 030-64 EACH CASTLE NUTS PLAIN FINISH 3/8 045-43 7/16 045-45 1/2 045-47 9/16 045-49 5/8 045-51 3/4 045-53 7/8 045-55 1 045-57 1-1/4 045-61 HEX SLOTTED NUTS USS 3/8 050-43 7/16 050-45 1/2 050-46 050-47 9/16 050-48 050-49 5/8 050-50 050-51 3/4 050-52 050-53 7/8 050-54 050-55 1 050-56 050-57 1-1/8 050-59 1-1/4 050-60 050-61 KEPS NUTS 4-40 042-22 6-32 042-26 8-32 042-30 10-24 042-34 10-32 042-35 12-24 042-36 1/4-20 042-38 5/16-18 042-40 3/8-16 042-42 USS AND SAE HEX NUTS Nuts NYLON INSERT LOCK NUTS 6-32 040-26 100 8-32 040-30 100 10-24 040-34 100 10-32 040-35 100 12-24 040-36 100 1/4 040-38 040-39 100 5/16 040-40 040-41 100 3/8 040-42 040-43 100 7/16 040-44 040-45 100 1/2 040-46 040-47 100 9/16 040-48 040-49 50 5/8 040-50 040-51 50 3/4 040-52 040-53 20 7/8 040-54 040-55 10 1 040-56 040-57 10 1-1/8 040-58 040-59 EACH 1-1/4 040-60 040-61 EACH Grade 5 133 E&G Terminal Corp. PREMIUM GRADE 8 HEX NUTS Yellow Zinc Plated SIZE USS SAE STD PKG 1/4 036-38 036-39 100 5/16 036-40 036-41 100 3/8 036-42 036-43 100 7/16 036-44 036-45 50 1/2 036-46 036-47 50 9/16 036-48 036-49 25 5/8 036-50 036-51 25 3/4 036-52 036-53 20 7/8 036-54 036-55 10 1 036-56 036-57 10 1-1/8 036-58 036-59 EACH 1-1/4 036-60 036-61 EACH ALL METAL GRADE 8 STOVER LOCK NUTS 1/4 038-38 038-39 100 5/16 038-40 038-41 100 3/8 038-42 038-43 100 7/16 038-44 038-45 100 1/2 038-46 038-47 100 9/16 038-48 038-49 50 5/8 038-50 038-51 50 3/4 038-52 038-53 20 7/8 038-54 038-55 10 1 038-56 038-57 10 1-1/8 038-58 038-59 EACH 1-1/4 038-60 038-61 EACH GRADE 8 NYLON INSERT LOCK NUTS Yellow Zinc Plated, Imported 1/4 041-38 041-39 100 5/16 041-40 041-41 100 3/8 041-42 041-43 100 7/16 041-44 041-45 100 1/2 041-46 041-47 100 9/16 041-48 041-49 50 5/8 041-50 041-51 50 3/4 041-52 041-53 20 7/8 041-54 041-55 10 1 041-56 041-57 10 ECONOMY GR8 HEX NUTS 1/4 037-38 037-39 100 5/16 037-40 037-41 100 3/8 037-42 037-43 100 7/16 037-44 037-45 50 1/2 037-46 037-47 50 5/8 037-50 037-51 25 3/4 037-52 037-53 20 7/8 037-54 10 1 037-56 10 grade 8 USS AND SAE HEX NUTS NYLON INSERT HEX JAM NUTS 1/4 040-381 040-391 100 5/16 040-401 040-411 50 3/8 040-421 040-431 50 7/16 040-441 040-451 25 1/2 040-461 040-471 25 9/16 040-481 040-491 25 5/8 040-501 040-511 25 3/4 040-521 040-531 10 1 040-561 10 1-1/8 040-581 EACH 1-1/4 040-601 EACH SIZE THICK USS SAE STD PKG 1/4 5/32 034-38 034-39 100 5/16 3/16 034-40 034-41 50 3/8 7/32 034-42 034-43 50 7/16 1/4 034-44 034-45 25 1/2 5/16 034-46 034-47 25 9/16 5/16 034-48 034-49 25 5/8 3/8 034-50 034-51 25 3/4 27/64 034-52 034-53 20 7/8 31/64 034-54 034-55 EACH 1 35/64 034-56 034-57 EACH 1-1/8 39/94 034-58 034-59 EACH 1-1/4 23/32 034-60 034-61 EACH 1-1/2 27/32 034-62 EACH LEFT HAND HEX JAM NUTS HEAVY HEX NUTS SIZE WIDTH ACROSS FLAT USS ONLY STD PKG 1/4 1/2 032-38 100 5/16 9/16 032-40 50 3/8 11/16 032-42 50 7/16 3/4 032-44 25 1/2 7/8 032-46 25 9/16 7/8 032-48 25 5/8 1-1/16 032-50 25 3/4 1-1/16 032-52 20 7/8 1-1/16 032-54 EACH 1 1-5/8 032-56 EACH HEX MACHINE SCREW NUTS 2-56 060-16 4-40 060-22 5-40 060-24 6-32 060-26 8-32 060-30 10-24 060-34 10-32 060-35 12-24 060-36 SPECIALTY HEX NUTS, USS AND SAE 135 E&G Terminal Corp. TEE NUTS 6-32 052-26 8-32 052-30 10-24 052-34 10-32 052-35 1/4-20 052-38 5/16-18 052-40 3/8-16 052-42 WING NUTS 8-32 048-30 10-24 048-34 10-32 048-35 1/4-20 048-38 5/16-18 048-40 3/8-16 048-42 1/2-13 048-46 SQUARE NUTS 8-32 054-30 10-24 054-34 10-32 054-35 1/4-20 054-38 3/8-16 054-42 1/2-13 054-46 ROD COUPLING NUTS 10-24 046-34 10-32 046-35 1/4 046-38 046-39 5/16 046-40 046-41 3/8 046-42 7/16 046-44 1/2 046-46 5/8 046-50 3/4 046-52 1 046-56 CAP NUTS NICKEL PLATED 6-32 044-26 8-32 044-30 10-24 044-34 10-32 044-35 1/4-20 044-38 5/16-18 044-40 3/8-16 044-42 1/2-13 044-46 HIGH NUTS FINE THREAD ONLY 3/8-24 047-43 7/16-20 047-45 1/2-20 047-47 9/16-18 047-49 5/8-18 047-51 3/4-16 047-53 7/8-14 047-55 1-14 047-57 1-1/8-12 047-59 1-1/4-12 047-61 LEFT HAND HEX NUTS HVY. LH USS LH SAE 5/16 056-40 056-41 3/8 056-42 056-43 7/16 056-44 056-45 1/2 056-46 056-47 5/8 056-50 056-51 3/4 056-52 056-53 1 056-56 056-57 HEAVY PATTERN ON USS SIZES SPECIALTY NUTS, USS AND SAE USS FLAT WASHERS BOLT SIZE O.D. I.D. APPROX. THICKNESS 070-34 3/16 (10) 9/16 1/4 3/64 361 100 BAG 070-38 1/4 3/4 5/16 1/16 149 2 LB. PKG 070-40 5/16 7/8 3/8 5/64 87 2 LB. PKG 070-42 3/8 1 7/16 5/64 67 2 LB. PKG 070-44 7/16 1-1/4 1/2 5/64 41 2 LB. PKG 070-46 1/2 1-3/8 9/16 7/64 26 2 LB. PKG 070-48 9/16 1-1/2 5/8 7/64 22 2 LB. PKG 070-50 5/8 1-3/4 11/16 9/64 13 2 LB. PKG 070-52 3/4 2 13/16 5/32 9.1 2 LB. PKG 070-54 7/8 2-1/4 15/16 11/64 6.4 2 LB. PKG 070-56 1 2-1/2 1-1/16 11/64 5.3 2 LB. PKG 070-601 1-1/4 3 1-3/8 11/64 3.8 EACH 070-621 1-3/8 3-1/4 1-1/2 3/16 3 EACH 070-641 1-1/2 3-1/2 1-5/8 3/16 2.6 EACH 070-681 1-3/4 4 1-7/8 3/16 2 EACH 070-721 2 4-1/2 2-1/8 3/16 1.6 EACH 071-26 6 3/8 5/32 3/64 790 100 BAG 071-30 8 7/16 3/16 3/64 585 100 BAG 071-34 3/16 (10) 1/2 7/32 3/64 435 100 BAG 071-38 1/4 5/8 9/32 1/16 222 2 LB. PKG 071-40 5/16 11/16 11/32 1/16 192 2 LB. PKG 071-42 3/8 13/16 13/32 1/16 140 2 LB. PKG 071-44 7/16 59/64 15/32 1/16 105 2 LB. PKG 071-46 1/2 1-1/16 17/32 3/32 55 2 LB. PKG 071-48 9/16 1-3/16 19/32 3/32 43 2 LB. PKG 071-50 5/8 1/5/16 21/32 3/32 36 2 LB. PKG 071-52 3/4 1-1/2 13/16 9/64 21 2 LB. PKG 071-54 7/8 1-3/4 15/16 9/64 16 2 LB. PKG 071-56 1 2 1-1/16 9/64 12 2 LB. PKG FLAT WASHERS 137 E&G Terminal Corp. USS HARDENED FLAT WASHERS Yellow Zinc Plating BOLT SIZE I.D. O.D. STD PKG 072-38 1/4 5/16 3/4 200 072-40 5/16 3/8 7/8 200 072-42 3/8 7/16 1 200 072-44 7/16 1/2 1-1/4 100 072-46 1/2 9/16 1-3/8 100 072-48 9/16 5/8 1-1/2 100 072-50 5/8 11/16 1-3/4 50 072-52 3/4 13/16 2 50 072-54 7/8 15/16 2-1/4 25 072-56 1 1-1/16 2-1/2 25 072-58 1-1/8 1-1/4 2-3/4 25 072-60 1-1/4 1-3/8 3 25 CARBURIZED WASHERS F-436 Structural Washers SAE pattern Plain Finish For Use with GR 8 Hex Cap Screws BOLT SIZE 1/4 KEG 076-46 1/2 1250 pcs. 076-48 9/16 2000 pcs. 076-50 5/8 1000 pcs. 076-52 3/4 1000 pcs. 076-54 7/8 500 pcs. 076-56 1 375 pcs. 073-38 1/4 9/32 5/8 200 073-40 5/16 11/32 11/16 200 073-42 3/8 13/32 13/16 200 073-44 7/16 15/32 59/64 100 073-46 1/2 17/32 1-1/16 100 073-48 9/16 19/32 1-3/16 100 073-50 5/8 21/32 1-5/16 50 073-52 3/4 13/16 1-1/2 50 073-54 7/8 15/16 1-3/4 25 073-56 1 1-1/16 2 25 073-58 1-1/8 1-3/16 2-1/4 25 073-60 1-1/4 1-5/16 2-1/2 25 073-64 1-1/2 1-9/16 3 25 USS HARDENED EXTRA THICK flat WASHER BOLT SIZE I.D. O.D. THICK. STD PKG 072-38HD 1/4 9/32 3/4 5/64 100 072-40HD 5/16 11/32 3/8 5/64 100 072-42HD 3/8 13/32 1 7/64 100 072-44HD 7/16 15/32 1-1/4 7/64 100 072-46HD 1/2 9/16 1-3/8 1/8 100 072-50HD 5/8 11/16 1-3/4 5/32 50 072-52HD 3/4 13/16 2 3/16 50 072-54HD 7/8 15/16 2-1/4 3/16 25 072-56HD 1 1-1/16 2-1/2 3/16 25 073-38HD 1/4 9/32 5/8 5/64 100 073-40HD 5/16 11/32 11/16 5/64 100 073-42HD 3/8 13/32 13/16 7/64 100 073-44HD 7/16 15/32 59/64 7/64 100 073-46HD 1/2 17/32 1-1/16 1/8 100 073-50HD 5/8 21/32 1-5/16 5/32 50 073-52HD 3/4 13/16 1-1/2 3/16 50 073-54HD 7/8 15/16 1-3/4 3/16 25 073-56HD 1 1-1/8 1-1/2 3/16 25 HARDENED FLAT WASHERS specialty washers AN WASHERS - STAINLESS STEEL BOLT SIZE ID OD THICK SS070-AN34 3/16 (10) .203 .438 .062 SS070-AN38 1/4 .265 .500 .062 SS070-AN40 5/16 .328 .562 .062 SS070-AN42 3/8 .390 .625 .062 SS070-AN44 7/16 .453 .750 .062 SS070-AN46 1/2 .515 .875 .062 steel FENDER WASHERS BOLT SIZE outside diameter STD PKG 700-1183 3/16 (10) 3/4 100 700-16018 3/16 (10) 1 100 700-16019 3/16 (10) 1-1/4 50 700-16020 1/4 1 100 074-38 1/4 1-1/4 100 074-40 5/16 1-1/4 100 700-1700 5/16 1-1/2 50 074-42 3/8 1-1/4 100 700-2227 3/8 1-1/2 50 700-3556 1/2 1-1/2 100 700-16023 1/2 2 25 SQUARE BEVEL MALLEABLE WASHERS BOLT SIZE STD PKG 078-42 3/8 EACH 078-46 1/2 EACH 078-50 5/8 EACH 078-52 3/4 EACH COPPER WASHERS ID OD THICK BOX 700-15914 1/4 5/8 1/16 25 700-15915 5/16 11/16 1/16 25 700-15916 3/8 3/4 1/16 25 700-15917 7/16 13/16 1/16 25 700-15918 1/2 7/8 1/16 25 700-15911 1/4 7/16 1/32 50 700-15913 5/16 1/2 1/32 50 700-15913 3/8 9/16 1/32 50 738-725014 7/16 5/8 1/32 50 738-725015 1/2 11/16 1/32 50 139 E&G Terminal Corp. HIGH COLLAR LOCK WASHERS SOCKET HEAD OR 12 POINT CAP SCREWS BLACK OXIDE FINISH 081-20 4 100 081-26 6 100 081-30 8 100 081-34 3/16 (10) 100 081-38 1/4 100 081-40 5/16 100 081-42 3/8 100 081-44 7/16 100 081-46 1/2 100 081-50 5/8 50 081-52 3/4 50 STAR LOCK WASHERS EXTERNAL - Zinc Plated SIZE STD PKG 082-20 4 100 082-26 6 100 082-30 8 100 082-34 3/16 (10) 100 082-36 12 100 082-38 1/4 100 082-40 5/16 100 082-42 3/8 100 082-44 7/16 100 082-46 1/2 100 082-48 9/16 50 082-50 5/8 50 082-52 3/4 50 082-54 7/8 25 082-56 1 25 inTERNAL - Zinc Plated BOLT SIZE STD 083-20 4 100 083-26 6 100 083-30 8 100 083-34 3/16 (10) 100 083-36 12 100 083-38 1/4 100 083-40 5/16 100 083-42 3/8 100 083-44 7/16 100 083-46 1/2 100 083-50 5/8 50 083-52 3/4 50 083-54 7/8 25 SPLIT LOCK WASHERS 080-20 4 100 080-26 6 100 080-30 8 100 080-34 3/16 (10) 200 080-36 12 100 080-38 1/4 200 080-40 5/16 200 080-42 3/8 200 080-44 7/16 100 080-46 1/2 100 080-48 9/16 100 080-50 5/8 100 080-52 3/4 50 080-54 7/8 25 080-56 1 10 080-58 1-1/8 EACH 080-60 1-1/4 EACH 080-62 1-3/8 EACH 080-64 1-1/2 EACH HIGH STRENGTH ALLOY LOCK WASHERS gR8 hEX cAP sCREWS 079-38 1/4 200 079-40 5/16 200 079-42 3/8 200 079-44 7/16 100 079-46 1/2 100 079-48 9/16 100 079-50 5/8 100 079-52 3/4 50 079-54 7/8 10 079-56 1 10 Alloy Steel, Black Oxide Coarse Thread USS 4-40 6-32 8-32 10-24 1/4-20 5/16-18 3/8-16 7/16-14 1/2-13 5/8-11 3/4-10 1/4 220-2208 220-2608 220-3008 220-3808 3/8 220-2212 220-2612 220-3012 220-3412 220-3812 220-4012 1/2 220-2216 220-2616 220-3016 220-3416 220-3816 220-4016 220-4216 5/8 220-2620 220-3020 220-3420 220-3820 220-4020 220-4220 3/4 220-2224 220-2624 220-3024 220-3424 220-3824 220-4024 220-4224 220-4424 220-4624 1 220-2632 220-3032 220-3432 220-3832 220-4032 220-4232 220-4432 220-4632 220-5032 1-1/4 220-3034 220-3434 220-3834 220-4034 220-4234 220-4434 220-4634 220-5034 1-1/2 220-3036 220-3436 220-3836 220-4036 220-4236 220-4436 220-4636 220-5036 1-3/4 220-3438 220-3838 220-4038 220-4238 220-4438 220-4638 220-5038 220-5238 2 220-3440 220-3840 220-4040 220-4240 220-4440 220-4640 220-5040 220-5240 2-1/4 220-3841 220-4041 220-4241 220-4441 220-4641 220-5041 220-5241 2-1/2 220-3842 220-4042 220-4242 220-4442 220-4642 220-5042 220-5242 3 220-3844 220-4044 220-4244 220-4444 220-4644 220-5044 220-5244 3-1/2 220-4246 220-4646 4 220-4248 220-4648 5 220-4252 Alloy Steel, Black Oxide Fine Thread SAE 10-32 1/4-28 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 1/4 220-3508 3/8 220-3512 220-3912 1/2 220-3516 220-3916 220-4116 220-4316 5/8 220-3520 220-3920 3/4 220-3524 220-3924 220-4124 220-4324 1 220-3532 220-3932 220-4132 220-4332 220-4532 220-4732 220-5132 1-1/4 220-3534 220-3934 220-4134 220-4334 220-4734 220-5134 1-1/2 220-3536 220-3936 220-4136 220-4336 220-4536 220-4736 220-5136 1-3/4 220-3538 220-3938 220-4138 220-4338 220-4738 220-5138 2 220-3540 220-3940 220-4140 220-4340 220-4540 220-4740 220-5140 2-1/2 220-4342 220-4742 220-5142 3 220-4744 SOCKET HEAD CAP SCREWS 141 E&G Terminal Corp. OF SCREW 6-32 8-32 10-24 1/4-20 5/16-18 3/8-16 7/16-14 1/2-13 5/8-11 3/8 222-2612 222-3012 222-3812 1/2 222-2616 222-3016 222-3416 222-3816 222-4016 222-4216 5/8 222-2620 222-3020 222-3420 222-3820 222-4020 222-4220 3/4 222-2624 222-3024 222-3424 222-3824 222-4024 222-4224 222-4424 222-4624 1 222-2632 222-3032 222-3432 222-3832 222-4032 222-4232 222-4432 222-4632 1-1/4 222-3434 222-3834 222-4034 222-4234 222-4434 222-4634 222-5034 1-1/2 222-3436 222-3836 222-4036 222-4236 222-4436 222-4636 222-5036 1-3/4 222-3838 222-4038 222-4238 222-4438 222-4638 222-5038 2 222-3840 222-4040 222-4240 222-4440 222-4640 222-5040 2-1/2 222-4242 222-4642 222-5042 3 222-4644 222-5044 Alloy Steel, Black Oxide, Fine Thread SAE Flat Socket Head Cap Screws 10-32 1/4-28 5/16-24 3/8-24 1/2-20 3/8 222-3512 1/2 222-3516 222-3916 3/4 222-3524 222-3924 222-4124 1 222-3532 222-3932 222-4132 222-4332 222-4732 1-1/4 222-3534 222-3934 222-4134 222-4334 222-4734 1-1/2 222-3536 222-3936 222-4136 222-4336 222-4736 1-3/4 222-4738 2 222-4740 Alloy Steel, Black Oxide, Button Socket Head Cap Screws 6-32 8-32 10-24 10-32 1/4-20 5/16-18 3/8-16 1/4 228-2608 228-3008 228-3408 228-3508 3/8 228-2612 228-3012 228-3412 228-3512 228-3812 228-4012 1/2 228-2616 228-3016 228-3416 228-3516 228-3816 228-4016 228-4216 5/8 228-2620 228-3020 228-3420 228-3820 228-4220 3/4 228-2624 228-3024 228-3424 228-3524 228-3824 228-4024 228-4224 1 228-2632 228-3032 228-3432 228-3532 228-3832 228-4032 228-4232 FLAT AND BUTTON HEAD SOCKET CAP SCREWS Alloy Steel, Black Oxide, Coarse Thread USS Flat Socket Head Cap Screws Alloy Steel, Black Oxide, Coarse Thread Cup Point 3/16 224-2606 224-3006 224-3406 224-3806 1/4 224-2608 224-3008 224-3408 224-3808 224-4008 224-4208 3/8 224-2612 224-3012 224-3412 224-3812 224-4012 224-4212 224-4612 1/2 224-2616 224-3016 224-3416 224-3816 224-4016 224-4216 224-4416 224-4616 5/8 224-2620 224-3020 224-3420 224-3820 224-4020 224-4220 224-4420 224-4620 3/4 224-3024 224-3424 224-3824 224-4024 224-4224 224-4424 224-4624 224-5024 1 224-3032 224-3432 224-3832 224-4032 224-4232 224-4432 224-4632 224-5032 1-1/4 224-3834 224-4034 224-4234 224-4634 224-5034 1-1/2 224-3836 224-4036 224-4236 224-4636 224-5036 1-3/4 224-3838 224-4038 224-4238 224-4638 2 224-3840 224-4040 224-4240 224-4640 2-1/2 224-4242 SET SCREWS Alloy Steel, Black Oxide, Fine Thread Cup Point 10-32 1/4-28 5/16-24 3/8-24 1/4 224-3508 224-3908 224-4108 3/8 224-3512 224-3912 224-4112 224-4312 1/2 224-3516 224-3916 224-4116 224-4316 5/8 224-3520 224-3920 224-4120 224-4320 3/4 224-3524 224-3924 224-4124 224-4324 1 224-3532 224-3932 224-4332 1-1/4 224-3934 224-4334 1-1/2 224-4336 SOCKET HEAD PIPE PLUGS NPT Dryseal, Alloy SteeI,Black Oxide PLUG 226-1200 1/16 5/16 27 100 226-2400 1/8 5/16 27 100 226-3800 1/4 7/16 18 100 226-4200 3/8 1/2 18 100 226-4600 1/2 9/16 14 50 226-5200 3/4 5/8 14 50 226-5600 1 3/4 11-1/2 25 226-6000 1-1/4 13/16 11-1/2 25 SOCKET SET SCREWS and DRYSEAL pipe plugs 143 E&G Terminal Corp. SHORT ARM KEY SIZE 232-0501 .050 232-0621 1/16 232-0781 5/64 232-0931 3/32 232-1091 7/64 232-1251 1/8 232-1401 9/64 232-1561 5/32 232-1871 3/16 232-2181 7/32 232-2501 1/4 232-3121 5/16 232-3751 3/8 232-5001 1/2 METRIC 232-033 3mm 232-043 4mm 232-063 6mm 232-083 8mm 232-103 10mm 232-123 12mm 232-143 14mm 232-173 17mm LONG ARM 232-0782 5/64 232-0932 3/32 232-1092 7/64 232-1252 1/8 232-1402 9/64 232-1562 5/32 232-1872 3/16 232-2182 7/32 232-2502 1/4 232-3122 5/16 232-3752 3/8 232-4372 7/16 232-5002 1/2 232-6252 5/8 232-7502 3/4 HEX KEYS Alloy SteeI Alloy Steel, Black Oxide SHOULDER DIAMETER AND THREAD PITCH SHOULDER 1/4 5/16 3/8 1/2 10-24 THREAD 1/4-20 THREAD 5/16-18 THREAD 3/8-16 THREAD 1/2 230-3816 230-4016 230-4216 230-4616 3/4 230-3824 230-4024 230-4224 230-4624 1 230-3832 230-4032 230-4232 230-4632 1-1/2 230-3836 230-4036 230-4236 230-4636 25 PER BOX ALSO SOLD INDIVIDUALLY SOCKET SHOULDER SCREWS Coarse Thread, Alloy Steel, Black Oxide, 170,000 PSI Tensile Strength 1/4-20 5/16-18 3/8-16 7/16-14 1/2-13 5/8-11 3/4-10 1/2 136-3816 5/8 136-3820 3/4 136-3824 136-4024 1 136-3832 136-4032 136-4232 136-4432 136-4632 136-5032 1-1/4 136-3834 136-4034 136-4234 1-1/2 136-3836 136-4036 136-4236 136-4436 136-4636 136-5036 1-3/4 136-4238 136-4638 136-5238 2 136-3840 136-4040 136-4240 136-4440 136-4640 136-5040 136-5240 2-1/2 136-4042 136-4242 136-4442 136-4642 136-5042 3 136-4044 136-4244 136-4444 136-4644 136-5044 3-1/2 136-4046 Fine Thread, Alloy Steel, Black Oxide, 170,000 PSI Tensile Strength 1/4-28 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 3/4 136-3924 1 136-3932 136-4132 136-4332 136-4732 1-1/4 136-4334 136-4534 1-1/2 136-4336 136-4536 136-4736 136-5136 1-3/4 136-4138 136-4338 136-4738 136-5138 2 136-4140 136-4540 136-4740 136-5140 2-1/4 136-5141 2-1/2 136-4342 136-4742 136-5142 3 136-4344 136-4744 136-5144 3-1/2 136-5146 4 136-5148 12-POINT FLANGE SCREWS 145 E&G Terminal Corp. GRADE 8.8 MM 4mm 5mm 6mm 7mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 10 240-0410 240-0510 240-0610 240-0810 12 240-0412 240-0512 240-0612 240-0712 240-0812 16 240-0416 240-0516 240-0616 240-0716 240-0816 240-1016 20 240-0420 240-0520 240-0620 240-0720 240-0820 240-1020 240-1220 25 240-0425 240-0525 240-0625 240-0725 240-0825 240-1025 240-1225 240-1425 30 240-0430 240-0530 240-0630 240-0730 240-0830 240-1030 240-1230 240-1430 35 240-0435 240-0535 240-0635 240-0735 240-0835 240-1035 240-1235 240-1435 240-1635 40 240-0440 240-0540 240-0640 240-0740 240-0840 240-1040 240-1240 240-1440 240-1640 240-1840 45 240-0645 240-0845 240-1045 240-1245 240-1445 240-1645 240-2045 50 240-0550 240-0650 240-0750 240-0850 240-1050 240-1250 240-1450 240-1650 240-1850 240-2050 55 240-0655 240-0855 240-1055 240-1255 240-1655 240-2055 60 240-0560 240-0660 240-0860 240-1060 240-1260 240-1460 240-1660 240-1860 240-2060 65 240-0665 240-0865 240-1065 240-1265 70 240-0570 240-0670 240-0870 240-1070 240-1270 240-1470 240-1670 75 240-0675 240-0875 240-1075 240-1275 240-1475 240-2075 80 240-0680 240-0880 240-1080 240-1280 240-1480 240-1680 240-2080 90 240-0690 240-0890 240-1090 240-1290 240-1490 240-1690 240-2090 100 240-06100 240-08100 240-10100 240-12100 240-14100 240-16100 240-20100 110 240-08110 240-10110 240-12110 120 240-08120 240-10120 240-12120 240-14120 240-16120 240-20120 150 240-08150 240-10150 240-12150 180 240-10180 240-12180 METRIC HEX HEAD CAP SCREWS 6mm 1.0 8mm 1.25 10mm 1.5 12mm 1.75 14mm 2.0 16mm 2.0 18mm 2.5 20mm 2.5 24mm 3.0 12 243-0612 16 243-0616 243-0816 20 243-0620 243-0820 243-1020 243-1220 243-1420 25 243-0625 243-0825 243-1025 243-1225 243-1425 30 243-0630 243-0830 243-1030 243-1230 243-1430 35 243-0635 243-0835 243-1035 243-1235 243-1435 243-1635 40 243-0640 243-0840 243-1040 243-1240 243-1440 243-1640 45 243-0645 243-0845 243-1045 243-1245 243-1445 243-1645 243-2045 50 243-0650 243-0850 243-1050 243-1250 243-1450 243-1650 243-1850 243-2050 243-2450 55 243-0855 243-1055 243-1455 60 243-0660 243-0860 243-1060 243-1260 243-1460 243-1660 243-1860 243-2060 243-2460 70 243-0670 243-0870 243-1070 243-1270 243-1470 243-1670 243-1870 243-2070 75 243-1675 80 243-0680 243-0880 243-1080 243-1280 243-1480 243-1680 243-1880 243-2080 243-2480 90 243-1090 243-1290 243-1490 243-1690 243-1890 243-2090 243-2490 100 243-06100 243-08100 243-10100 243-12100 243-14100 243-16100 243-18100 243-20100 243-24100 110 243-16110 120 243-10120 243-12120 243-14120 243-16120 243-18120 243-20120 243-24120 140 243-20140 150 243-10150 243-12150 243-14150 243-24150 160 243-16160 243-18160 243-20160 170 243-24170 180 243-12180 243-16180 260 243-16260 243-20260 243-24260 GRADE 10.9 147 E&G Terminal Corp. GRADE 10.9 FINE THREAD 8mm 1.0 10mm 1.25 12mm 1.5 14mm 1.5 16mm 1.5 16 244-0816 244-1016 20 244-0820 244-1020 244-1220 25 244-0825 244-1025 244-1225 30 244-0830 244-1030 244-1230 244-1430 244-1630 35 244-1035 244-1235 40 244-0840 244-1040 244-1240 244-1440 244-1640 45 244-1045 244-1245 50 244-0850 244-1050 244-1250 244-1450 244-1650 55 244-1055 60 244-0860 244-1060 244-1260 244-1460 244-1660 80 244-0880 244-1080 244-1280 244-1680 100 244-08100 244-10100 244-12100 244-16100 120 244-10120 244-12120 244-16120 GRADE 10.9 EXTRA FINE THREAD 10mm 1.0 12mm 1.25 20 245-1020 245-1220 25 245-1025 245-1225 30 245-1030 245-1230 35 245-1035 245-1235 40 245-1040 245-1240 50 245-1050 245-1250 60 245-1060 245-1260 80 245-1080 245-1280 100 245-10100 245-12100 120 245-12120 METRIC THREADED ROD ONE METER ZINC PLATED DIN 996 SIZE PITCH 266-0407 4mm .70 266-0508 5mm .80 266-0610 6mm 1.0 266-0710 7mm 1.0 266-0812 8mm 1.25 266-1015 10mm 1.50 266-1217 12mm 1.75 266-1420 14mm 2.0 266-1620 16mm 2.0 METRIC STUDS GRADE 10.9 ALLOY STEEL THREAD SIZE PITCH OVERALL box 700-11973 6mm 1.00 27.5mm 10 700-11974 6mm 1.00 32.5mm 10 700-11980 8mm 1.25 30.0mm 10 700-11981 8mm 1.25 35.0mm 10 700-11982 8mm 1.25 40.0mm 10 700-11983 8mm 1.25 45.0mm 10 700-11984 8mm 1.25 50.0mm 10 700-11987 8mm 1.25 65.0mm 10 700-11989 10mm 1.50 42.0mm 10 700-11990 10mm 1.50 47.0mm 10 700-11991 10mm 1.50 52.0mm 10 700-11993 10mm 1.50 62.0mm 10 700-11995 10mm 1.50 77.0mm 5 700-11998 12mm 1.75 45.0mm 5 METRIC PHILLIPS PAN HEAD MACHINE SCREWS DIN 7985 3mm 5mm 10 264-0310 264-0410 264-0510 264-0610 12 264-0312 264-0412 264-0512 264-0612 16 264-0316 264-0416 264-0516 264-0616 20 264-0320 264-0420 264-0520 264-0620 25 264-0325 264-0425 264-0525 264-0625 30 264-0330 264-0430 264-0530 264-0630 40 264-0340 264-0440 264-0540 264-0640 B7 HIGH STRENGTH ONE METER - PLAIN FINISH 4140 ALLOY STEEEL HEAT TREATED 266-0812b7 8 mm x 1.25 266-10125b7 10 mm x 1.25 266-1015b7 10 mm x 1.50 266-1217b7 12 mm x 1.75 266-1420b7 14 mm x 2.0 266-1620b7 16 mm x 2.0 METRIC KEYSTOCK Zinc Plated 12" s 166-0404 4 mm 166-0505 5 mm 166-0606 6 mm 166-0808 8 mm 166-1010 10 mm 166-1212 12 mm METRIC MACHINE SCREWS, ALLTHREAD, STUDS & KEYSTOCK 149 E&G Terminal Corp. Alloy Steel, Black Oxide DIN 912 GRADE 12.9 12 258-0612 16 258-0416 258-0516 258-0616 258-0816 20 258-0420 258-0520 258-0620 258-0820 258-1020 25 258-0425 258-0525 258-0625 258-0825 258-1025 30 258-0430 258-0530 258-0630 258-0830 258-1030 258-1230 40 258-0440 258-0540 258-0640 258-0840 258-1040 258-1240 50 258-0450 258-0550 258-0650 258-0850 258-1050 258-1250 60 258-0660 258-0860 258-1060 258-1260 80 258-0880 258-1080 258-1280 METRIC SOCKET SET SCREWS Alloy Steel, Black Oxide, Cup Point 6 259-0406 259-0506 8 259-0408 259-0508 259-0608 10 259-0810 12 259-0412 259-0512 259-0612 259-1012 16 259-0616 259-0816 259-1016 20 259-0620 259-0820 259-1020 METRIC FLAT SOCKET HEAD cap SCREWS Alloy Steel, Black Oxide DIN 7991 GRADE 10.9 12 260-0412 260-0512 16 260-0416 260-0516 260-0616 20 260-0420 260-0520 260-0620 260-0820 30 260-0430 260-0530 260-0630 260-0830 260-1030 260-1230 40 260-0440 260-0540 260-0640 260-0840 260-1040 260-1240 50 260-0450 260-0550 260-0650 260-0850 260-1050 260-1250 60 260-1060 260-1260 METRIC SOCKET HEAD CAP SCREWS METRIC HEX NUTS CLASS 8 ZINC PLATED DIN 934 SIZE PITCH WIDTH STD 246-0305 3mm .50 5.5 100 246-0407 4mm .70 7 100 246-0508 5mm .80 8 100 246-0610 6mm 1.0 10 100 246-0710 7mm 1.0 11 100 246-0810 8mm 1.0 13 100 246-0812 8mm 1.25 13 100 246-1010 10mm 1.0 17 100 246-1012 10mm 1.25 17 100 246-1015 10mm 1.5 17 100 246-1212 12mm 1.25 19 100 246-1215 12mm 1.5 19 100 246-1217 12mm 1.75 19 100 246-1415 14mm 1.5 22 100 246-1420 14mm 2.0 22 100 246-1615 16mm 1.5 24 100 246-1620 16mm 2.0 24 100 246-1815 18mm 1.5 27 25 246-1825 18mm 2.5 27 25 246-2025 20mm 2.5 30 25 246-2430 24mm 3.0 36 25 METRIC NYLON INSERT LOCK NUT CLASS 8 ZINC PLATED DIN 958 247-0407 4mm .70 7 100 247-0508 5mm .80 8 100 247-0610 6mm 1.0 10 100 247-0710 7mm 1.0 11 100 247-0810 8mm 1.0 13 100 247-0812 8mm 1.25 13 100 247-1010 10mm 1.0 17 100 247-1012 10mm 1.25 17 100 247-1015 10mm 1.5 17 100 247-1212 12mm 1.25 19 100 247-1215 12mm 1.5 19 100 247-1217 12mm 1.75 22 100 247-1415 14mm 1.5 22 50 247-1420 14mm 2.0 22 50 247-1620 16mm 2.0 24 50 CLASS 8 ZINC PLATED COMPATIBLE WITH GRADE 8.8 METRIC FASTENERS 151 E&G Terminal Corp. METRIC HEX NUTS CLASS 10 plain finish - DIN 934 SIZE PITCH STD PKG 249-0610 6mm 1.0 100 249-0812 8mm 1.25 100 249-1015 10mm 1.5 100 249-1217 12mm 1.75 100 249-1420 14mm 2.0 50 249-1620 16mm 2.0 50 249-1825 18mm 2.5 50 249-2025 20mm 2.5 50 249-2430 24mm 3.0 25 METRIC all metal LOCK NUTS CLASS 10 zinc plated 250-0610 6mm 1.0 100 250-0812 8mm 1.25 100 250-1015 10mm 1.5 100 250-1217 12mm 1.75 100 250-1420 14mm 2.0 50 250-1620 16mm 2.0 50 250-1825 18mm 2.5 50 250-2025 20mm 2.5 50 250-2430 24mm 3.0 25 fine thread METRIC HEX NUTS CLASS 10 plain finish - DIN 934 249-0810 8mm 1.0 100 249-1012 10mm 1.25 100 249-1215 12mm 1.5 100 249-1415 14mm 1.5 50 249-1615 16mm 1.5 50 250-0810 8mm 1.0 100 250-1012 10mm 1.25 100 250-1215 12mm 1.5 100 250-1415 14mm 1.5 50 250-1615 16mm 1.5 50 extra fine thread 249-1010 10mm 1.0 100 249-1212 12mm 1.25 100 CLASS 10 HARDENED METRIC FLAT WASHERS ZINC PLATED DIN 125A SIZE ID OD std pkg 252-03 3mm 3.2 7 100 252-04 4mm 4.3 9 100 252-05 5mm 5.3 10 100 252-06 6mm 6.4 12.5 100 252-07 7mm 7.4 14 100 252-08 8mm 8.4 17 100 252-10 10mm 10.5 21 100 252-12 12mm 13 24 100 252-14 14mm 15 28 100 252-16 16mm 17 30 100 ZINC PLATED DIN 127B SIZE STD PKG 253-04 4mm 100 253-05 5mm 100 253-06 6mm 100 253-07 7mm 100 253-08 8mm 100 253-10 10mm 100 253-12 12mm 100 253-14 14mm 100 253-16 16mm 100 253-18 18mm 50 253-20 20mm 50 253-24 24MM 25 ALSO SOLD INDIVIDUALLY CLASS 10 METRIC FLAT WASHERs HARDENED DIN 125A ZINC PLATED 251-06 6mm 6.4 12.5 100 251-08 8mm 8.4 17 100 251-10 10mm 10.5 21 100 251-12 12mm 13 24 100 251-14 14mm 15 28 100 251-16 16mm 17 30 50 251-18 18mm 19 34 10 251-20 20mm 21 37 10 251-24 24mm 25 44 10 METRIC WASHERS 153 E&G Terminal Corp. STAINLESS STEEL HEX HEAD CAP SCREWs 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11 1/2 SS010-3816 SS010-4016 5/8 SS010-3820 3/4 SS010-3824 SS010-4024 SS010-4224 1 SS010-3832 SS010-4032 SS010-4232 SS010-4632 1-1/4 SS010-3834 SS010-4034 SS010-4234 SS010-4634 1-1/2 SS010-3836 SS010-4036 SS010-4236 SS010-4636 SS010-5036 1-3/4 SS010-3838 SS010-4038 SS010-4238 SS010-4638 SS010-5038 2 SS010-3840 SS010-4040 SS010-4240 SS010-4640 SS010-5040 2-1/4 SS010-3841 SS010-4041 SS010-4241 SS010-4641 SS010-5041 2-1/2 SS010-3842 SS010-4042 SS010-4242 SS010-4642 SS010-5042 3 SS010-3844 SS010-4044 SS010-4244 SS010-4644 SS010-5044 3-1/2 SS010-3846 SS010-4046 SS010-4246 SS010-4646 SS010-5046 4 SS010-5048 STAINLESS STEEL HEX NUTS USS SAE PKG 6-32 SS030-26 100 8-32 SS030-30 100 10-24 SS030-34 100 10-32 SS030-35 100 1/4 SS030-38 SS030-39 100 5/16 SS030-40 SS030-41 100 3/8 SS030-42 SS030-43 100 7/16 SS030-44 SS030-45 50 1/2 SS030-46 SS030-47 50 5/8 SS030-50 SS030-51 50 3/4 SS030-52 50 7/8 SS030-54 25 1 SS030-56 25 SS040-26 6-32 100 SS040-30 8-32 100 SS040-34 10-24 100 SS040-35 10-32 100 SS040-38 1/4-20 100 SS040-40 5/16-18 100 SS040-44 7/16-14 100 SS040-42 3/8-16 100 SS040-46 1/2-13 100 SS040-50 5/8-11 50 SS040-52 3/4-10 20 STAINLESS STEEL FASTENERS CALL E&G FOR LARGER SIZES SS042-34 10-24 SS042-35 10-32 SS044-30 8/32 SS044-35 10/32 SS044-38 1/4-20 SS048-35 10/32 SS048-38 1/4-20 SS080-26 6 100 SS080-30 8 100 SS080-34 10 100 SS080-38 1/4 100 SS080-40 5/16 100 SS080-42 3/8 100 SS080-44 7/16 100 SS080-46 1/2 100 SS080-50 5/8 100 SS080-52 3/4 50 FENDER WASHERS BOLT SIZE O.D. SS074-38 1/4” 1-1/4” SS074-40 5/16” 1-1/2” SS074-42 3/8" 2" SS074-46 1/2" 2" STAINLESS STEEL AN WASHERS SS070-AN34 (#10)3/16 .203 .438 .062 BOLT SIZE o.d. STD PKG SS071-26 #6 .375 100 SS071-30 #8 .375 100 SS071-34 #10 .437 100 SS070-38 1/4 .625 100 SS070-40 5/16 .750 100 SS070-42 3/8 1.00 100 SS070-44 7/16 1.125 100 SS070-46 1/2 1.25 100 SS070-50 5/8 1.50 50 SS070-52 3/4 1.75 50 155 E&G Terminal Corp. SOCKET HEAD CAP SCREWS TYPE 18-8 6-32 8-32 10-24 10-32 1/4-20 5/16-18 3/8-16 1/2-13 3/8 SS220-2612 SS220-3012 1/2 SS220-2616 SS220-3016 SS220-3416 SS220-3516 SS220-3816 3/4 SS220-2624 SS220-3024 SS220-3424 SS220-3524 SS220-3824 SS220-4024 SS220-4224 1 SS220-2632 SS220-3032 SS220-3432 SS220-3532 SS220-3832 SS220-4032 SS220-4232 SS220-4632 1-1/4 SS220-3034 SS220-3434 SS220-3534 SS220-3834 SS220-4034 SS220-4234 SS220-4634 1-1/2 SS220-3036 SS220-3436 SS220-3536 SS220-3836 SS220-4036 SS220-4236 SS220-4636 2 SS220-3440 SS220-3540 SS220-3840 SS220-4040 SS220-4240 SS220-4640 2-1/2 SS220-4042 SS220-4242 SS220-4642 PKG 100 50 FLAT SOCKET HEAD CAP SCREWS TYPE 18-8 6-32 8-32 10-24 10-32 1/4-20 5/16-18 3/8-16 1/2 SS222-2616 SS222-3016 SS222-3416 SS222-3516 SS222-3816 3/4 SS222-2624 SS222-3024 SS222-3424 SS222-3524 SS222-3824 SS222-4024 SS222-4224 1 SS222-2632 SS222-3032 SS222-3432 SS222-3532 SS222-3832 SS222-4032 SS222-4232 1-1/4 SS222-3034 SS222-3434 SS222-3534 SS222-3834 SS222-4034 SS222-4234 1-1/2 SS222-3436 SS222-3536 SS222-3836 SS222-4036 SS222-4236 BUTTON SOCKET HEAD CAP SCREWS TYPE 18-8 1/2 SS228-2616 SS228-3016 SS228-3416 SS228-3516 3/4 SS228-2624 SS228-3024 SS228-3424 SS228-3524 SS228-3824 SS228-4024 SS228-4224 1 SS228-2632 SS228-3032 SS228-3432 SS228-3532 SS228-3832 SS228-4032 SS228-4232 1-1/4 SS228-3534 SS228-3834 SS228-4034 SS228-4234 1-1/2 SS228-3536 SS228-3836 SS228-4036 SS228-4236 PHILLIPS FLAT HEAD MACHINE SCREWS TYPE 18-8 6-32 8-32 10-24 10-32 1/4-20 3/8 SS103-2612 SS103-3012 SS103-3412 SS103-3512 1/2 SS103-2616 SS103-3016 SS103-3416 SS103-3516 3/4 SS103-2624 SS103-3024 SS103-3424 SS103-3524 SS103-3824 1 SS103-3032 SS103-3432 SS103-3532 SS103-3832 1-1/4 SS103-3434 SS103-3834 1-1/2 SS103-3436 SS103-3836 PHILLIPS PAN HEAD MACHINE SCREWS TYPE 18-8 1/4 SS107-2608 3/8 SS107-2612 SS107-3012 SS107-3412 SS107-3512 1/2 SS107-2616 SS107-3016 SS107-3416 SS107-3516 SS107-3816 5/8 SS107-2620 SS107-3020 SS107-3420 SS107-3520 SS107-3820 3/4 SS107-2624 SS107-3024 SS107-3424 SS107-3524 SS107-3824 1 SS107-2632 SS107-3032 SS107-3432 SS107-3532 SS107-3832 1-1/4 SS107-3434 SS107-3534 SS107-3834 1-1/2 SS107-3436 SS107-3536 SS107-3836 PHILLIPS TRUSS HEAD MACHINE SCREWS TYPE 18-8 1/2 SS111-2616 SS111-3016 SS111-3416 SS111-3516 SS111-3816 3/4 SS111-2624 SS111-3024 SS111-3424 SS111-3524 SS111-3824 1 SS111-2632 SS111-3032 SS111-3432 SS111-3532 SS111-3832 157 E&G Terminal Corp. PHILLIPS PAN HEAD TAPPING SCREWS - type 18-8 #8 #10 #14 1/2 SS115-3016 SS115-3416 5/8 SS115-3020 3/4 SS115-3024 SS115-3424 SS115-3824 1 SS115-3032 SS115-3432 CARRIAGE BOLTS - type 18-8 3/4 SS130-3824 SS130-4024 1 SS130-3832 SS130-4032 SS130-4232 1-1/4 SS130-3834 SS130-4034 SS130-4234 1-1/2 SS130-3836 SS130-4036 SS130-4236 2 SS130-3840 SS130-4040 SS130-4240 2-1/2 SS130-3842 SS130-4042 SS130-4242 3 SS130-3844 SS130-4044 SS130-4244 SELF DRILLING SCREWs-type 410 #8 #10 1/2 SS143-3016 3/4 SS143-3024 SS143-3424 1 SS143-3032 HEX HEAD self drilling SCREWS - type 410 #8 #10 #12 #14 1/2 SS142-3016 SS142-3416 3/4 SS142-3024 SS142-3424 SS142-3624 SS142-3824 1 SS142-3032 SS142-3432 SS142-3632 SS142-3832 1-1/4 SS142-3434 SS142-3834 1-1/2 SS142-3036 SS142-3436 SS142-3636 SS142-3836 2 SS142-3840 PHILLIPS TRUSS HEAD 1/2 SS117-3016 SS117-3416 3/4 SS117-3024 SS117-3424 SS117-3824 1 SS117-3032 THREADED ROD - type 18-8 3 FOOT S SS150-3580 10-32 SS150-3880 1/4–20 SS150-4080 5/16–18 SS150-4280 3/8–16 SS150-4680 1/2–13 SS150-5080 5/8–11 CARRIAGE AND LAG SCREWS CARRIAGE SCREWS ZINC PLATED GRADE 2 10-24 1/4-20 5/16-18 3/8-16 1/2-13 1/2 130-3416 130-3816 3/4 130-3424 130-3824 130-4024 1 130-3432 130-3832 130-4032 130-4232 130-4632 1-1/4 130-3434 130-3834 130-4034 130-4234 130-4634 1-1/2 130-3436 130-3836 130-4036 130-4236 130-4636 1-3/4 130-3838 130-4038 130-4238 130-4638 2 130-3440 130-3840 130-4040 130-4240 130-4640 2-1/4 130-3841 130-4041 130-4241 130-4641 2-1/2 130-3842 130-4042 130-4242 130-4642 3 130-3844 130-4044 130-4244 130-4644 3-1/2 130-3846 130-4046 130-4246 130-4646 4 130-3848 130-4048 130-4248 130-4648 4-1/2 130-3850 130-4050 130-4250 130-4650 5 130-3852 130-4052 130-4252 130-4652 6 130-3854 130-4054 130-4254 130-4654 7 130-3856 130-4056 130-4256 130-4656 8 130-3858 130-4058 130-4258 130-4658 100 50 25 GRade 5 CARRIAGE SCREWS 3/8-16 1/2-13 5/8-11 1-1/2 131-4236 131-4636 131-5036 2 131-4240 131-4640 131-5040 2-1/2 131-4242 131-4642 131-5042 3 131-4244 131-4644 131-5044 3-1/2 131-4246 131-4646 131-5046 4 131-4248 131-4648 131-5048 HEX HEAD LAG SCREWS 1/4-10 5/16-9 3/8-7 1/2-6 1 132-3832 132-4032 132-4232 1-1/4 132-3834 132-4034 132-4234 1-1/2 132-3836 132-4036 132-4236 132-4636 1-3/4 132-3838 132-4038 132-4238 2 132-3840 132-4040 132-4240 132-4640 2-1/2 132-3842 132-4042 132-4242 132-4642 3 132-3844 132-4044 132-4244 132-4644 3-1/2 132-3846 132-4046 132-4246 132-4646 4 132-3848 132-4048 132-4248 132-4648 4-1/2 132-3850 132-4050 132-4250 132-4650 5 132-3852 132-4052 132-4252 132-4652 6 132-3854 132-4054 132-4254 132-4654 7 132-4256 Grade 8 Carriage Screws Available on Special Order 159 E&G Terminal Corp. STEP SCREWS 1/4-20 5/16-18 1 134-3832 134-4032 1-1/4 134-3834 134-4034 1-1/2 134-3836 134-4036 2 134-3840 134-4040 2-1/2 134-4042 ELEVATOR SCREWS 1 135-3832 135-4032 135-4232 1-1/4 135-3834 135-4034 135-4234 1-1/2 135-3836 135-4036 135-4236 2 135-3840 135-4040 135-4240 2-1/2 135-3842 135-4042 135-4242 3 135-3844 DOMED SCRAPER SCREWS SAE J429 GRADE 8 140-5040 5/8-11 x 2 140-5041 5/8-11 x 2-1/4 140-5042 5/8-11 x 2-1/2 140-5044 5/8-11 x 3 140-5046 5/8-11 x 3-1/2 140-5242 3/4-10 x 2-1/2 flat head plow bolts 140-4636 1/2-13 x 1-1/2 140-4640 1/2-13 x 2 140-4642 1/2-13 x 2-1/2 140-4644 1/2-13 x 3 SPECIALTY FASTENERS RUBBER VIBRATION ISOLATORS A B C THREAD SIZE 735-21NPA 1" 3/4" 5/8" 1/4-20 735-26NPC 2" 3/4" 1-1/8" 3/8-16 SLOTTED ROUND HEAD MACHINE SCREWS 4-40 6-32 8-32 10-24 10-32 12-24 1/4-20 5/16-18 3/8-16 1/4 100-2208 100-2608 100-3008 100-3408 100-3508 3/8 100-2212 100-2612 100-3012 100-3412 100-3512 100-3612 1/2 100-2216 100-2616 100-3016 100-3416 100-3516 100-3616 100-3816 3/4 100-2224 100-2624 100-3024 100-3424 100-3524 100-3624 100-3824 100-4024 100-4224 1 100-2232 100-2632 100-3032 100-3432 100-3532 100-3632 100-3832 100-4032 100-4232 1-1/4 100-2234 100-2634 100-3034 100-3434 100-3534 100-3634 100-3834 100-4034 1-1/2 100-2236 100-2636 100-3036 100-3436 100-3536 100-3636 100-3836 100-4036 100-4236 1-3/4 100-3438 100-3538 100-3838 100-4038 100-4244 2 100-2640 100-3040 100-3440 100-3540 100-3640 100-3840 100-4040 100-4240 2-1/2 100-3042 100-3442 100-3642 100-3842 100-4042 100-4242 3 100-3044 100-3444 100-3544 100-3844 100-4044 3-1/2 100-3446 100-3846 100-4046 4 100-3448 100-3848 100-4048 PHILLIPS ROUND HEAD MACHINE SCREWS 4-40 6-32 8-32 10-24 10-32 12-24 1/4-20 1/4 101-2608 101-3008 3/8 101-2212 101-2612 101-3012 1/2 101-2216 101-2616 101-3016 101-3416 101-3516 101-3616 101-3816 3/4 101-2224 101-2624 101-3024 101-3424 101-3524 101-3624 101-3824 1 101-3032 101-3432 101-3532 101-3832 1-1/2 101-3436 101-3536 101-3836 2 101-3840 161 E&G Terminal Corp. SLOTTED FLAT HEAD MACHINE SCREWS 3/8 102-2212 102-2612 102-3012 102-3412 102-3512 1/2 102-2216 102-2616 102-3016 102-3416 102-3516 102-3616 102-3816 3/4 102-2224 102-2624 102-3024 102-3424 102-3524 102-3624 102-3824 102-4024 1 102-2232 102-2632 102-3032 102-3432 102-3532 102-3632 102-3832 102-4032 102-4232 1-1/4 102-2634 102-3034 102-3434 102-3534 102-3834 1-1/2 102-2636 102-3036 102-3436 102-3536 102-3636 102-3836 102-4036 102-4236 2 102-3040 102-3440 102-3540 102-3640 102-3840 102-4040 102-4240 2-1/2 102-3042 102-3442 102-3542 102-3842 102-4042 102-4242 3 102-3044 102-3444 102-3544 102-3844 102-4044 102-4244 4 102-3048 102-3448 102-3548 102-3848 102-4048 102-4248 PHILLIPS FLAT HEAD MACHINE SCREWS 3/8 103-2612 103-3012 103-3412 103-3512 1/2 103-2616 103-3016 103-3416 103-3516 103-3816 5/8 103-2620 3/4 103-2624 103-3024 103-3424 103-3524 103-3824 1 103-2632 103-3032 103-3432 103-3532 103-3832 1-1/4 103-2634 103-3034 103-3434 103-3534 103-3834 1-1/2 103-2636 103-3036 103-3436 103-3536 103-3836 PHILLIPS FILLISTER HEAD MACHINE SCREWS 6-32 8-32 10-24 10-32 3/8 105-2612 105-3012 1/2 105-2616 105-3016 105-3416 105-3516 3/4 105-2624 105-3024 105-3424 105-3524 SLOTTED OVAL HEAD MACHINE SCREWS 1/2 108-2616 108-3016 108-3416 108-3516 3/4 108-2624 108-3024 108-3424 108-3524 108-3824 1 108-2632 108-3032 108-3432 108-3532 108-3832 1-1/2 108-2636 108-3036 108-3436 108-3536 108-3836 PHILLIPS PAN HEAD MACHINE SCREWS 4-40 6-32 8-32 10-24 10-32 1/4-20 1/4 107-2608 107-3008 107-3408 107-3508 3/8 107-2212 107-2612 107-3012 107-3412 107-3512 1/2 107-2216 107-2616 107-3016 107-3416 107-3516 107-3816 3/4 107-2224 107-2624 107-3024 107-3424 107-3524 107-3824 1 107-2232 107-2632 107-3032 107-3432 107-3532 107-3832 1-1/4 107-2634 107-3034 107-3434 107-3534 107-3834 1-1/2 107-2636 107-3036 107-3436 107-3536 107-3836 2 107-2640 107-3040 107-3440 107-3540 107-3840 SLOTTED PAN HEAD MACHINE SCREWS 1/4 106-2608 106-3008 3/8 106-2612 106-3012 106-3412 106-3512 1/2 106-2616 106-3016 106-3416 106-3516 3/4 106-2624 106-3024 106-3424 106-3524 106-3824 1 106-2632 106-3032 106-3432 106-3532 106-3832 1-1/2 106-3036 106-3436 106-3536 106-3836 163 E&G Terminal Corp. SLOTTED TRUSS HEAD MACHINE SCREWS 3/8 110-2612 110-3012 1/2 110-2616 110-3016 110-3416 110-3516 110-3816 3/4 110-2624 110-3024 110-3424 110-3524 110-3824 1 110-3032 110-3432 110-3532 110-3832 1-1/4 110-3834 1-1/2 110-3036 110-3436 110-3536 110-3836 PHILLIPS OVAL HEAD MACHINE SCREWS 3/8 109-2612 109-3012 1/2 109-2616 109-3016 109-3416 109-3516 109-3816 3/4 109-2624 109-3024 109-3424 109-3524 109-3824 1 109-2632 109-3032 109-3432 109-3532 109-3832 1-1/4 109-3034 109-3434 109-3534 109-3834 1-1/2 109-3036 109-3436 109-3536 109-3836 PHILLIPS TRUSS HEAD MACHINE SCREWS 3/8 111-2612 111-3012 111-3412 111-3512 1/2 111-2616 111-3016 111-3416 111-3516 111-3816 3/4 111-2624 111-3024 111-3424 111-3524 111-3824 1 111-3432 111-3532 111-3832 TORX FLOOR SCREWS Flat Head Steel Type F Phosphate & Oil Finish SIZE STD PKG Bit Bit 138-3836 1/4-20 x 1-1/2 25/100 T-30 7/32” 138-3840 1/4-20 x 2 25/100 T-30 7/32” 138-3841 1/4-20 x 2-1/4 25/100 T-30 7/32” 138-3842 1/4-20 x 2-1/2 25/100 T-30 7/32” 138-3844 1/4-20 x 3 25/100 T-30 7/32” 138-3846 1/4-20 x 3-1/2 25/100 T-30 7/32” 138-4040 5/16-18 x 2 25/100 T-40 9/32” 138-4042 5/16-18 x 2-1/2 25/100 T-40 9/32” 138-4044 5/16-18 x 3 25/100 T-40 9/32” THUMB SCREWS 144-3416 10/24 x 1/2 144-3516 10/32 x 1/2 144-3824 1/4-20 x 3/4 144-4024 5/16-18 x 3/4 144-4232 3/8-16 x 1 HEX HEAD MACHINE SCREWS 3/8 112-2612 112-3012 112-3412 112-3512 1/2 112-2616 112-3016 112-3416 112-3516 5/8 112-3420 112-3520 3/4 112-2624 112-3024 112-3424 112-3524 1 112-2632 112-3032 112-3432 112-3532 1-1/2 112-3036 112-3436 112-3536 165 E&G Terminal Corp. PHILLIPS PAN HEAD TAPPING SCREWS #4 #6 #8 #10 #12 #14 1/4 115-2008 115-2608 115-3008 3/8 115-2012 115-2612 115-3012 115-3412 1/2 115-2016 115-2616 115-3016 115-3416 115-3616 115-3816 5/8 115-2620 115-3020 115-3420 115-3620 115-3820 3/4 115-2024 115-2624 115-3024 115-3424 115-3624 115-3824 1 115-2032 115-2632 115-3032 115-3432 115-3632 115-3832 1-1/4 115-2634 115-3034 115-3434 115-3634 115-3834 1-1/2 115-2636 115-3036 115-3436 115-3636 115-3836 1-3/4 115-3038 115-3438 115-3638 115-3838 2 115-3040 115-3440 115-3640 115-3840 2-1/2 115-3442 115-3842 3 115-3444 115-3844 SLOTTED PAN HEAD TAPPING SCREW #6 #8 #10 #12 #14 1/4 114-2608 114-3008 3/8 114-2612 114-3012 1/2 114-2616 114-3016 114-3416 114-3816 5/8 114-3420 114-3620 114-3820 3/4 114-3424 114-3624 114-3824 1 114-3432 114-3632 114-3832 1-1/2 114-3436 114-3836 TAPPING SCREWS 1/2 117-3016 117-3416 3/4 117-3024 117-3424 117-3624 117-3824 1 117-3032 117-3432 PHILLIPS FLAT HEAD 3/8 119-2012 119-2612 119-3012 1/2 119-2016 119-2616 119-3016 119-3416 5/8 119-2020 119-2620 119-3020 3/4 119-2024 119-2624 119-3024 119-3424 119-3624 1 119-2632 119-3032 119-3432 119-3632 119-3832 1-1/4 119-2634 119-3034 119-3434 119-3634 119-3834 1-1/2 119-2636 119-3036 119-3436 119-3636 119-3836 2 119-3640 119-3840 SLOTTED HEX WASHER HEAD #6 #8 #10 #12 #14 5/16 3/8 3/8 124-2612 124-3012 1/2 124-2616 124-3016 124-3416 124-3616 124-3816 *124-4016* 5/8 124-2620 124-3020 124-3420 124-3620 124-3820 3/4 124-2624 124-3024 124-3424 124-3624 124-3824 *700-2978* *124-4224* 1 124-2632 124-3032 124-3432 124-3632 124-3832 *700-2979* *124-4232* 1-1/4 124-3034 124-3434 124-3634 124-3834 *700-2980* *124-4234* 1-1/2 124-3036 124-3436 124-3636 124-3836 *700-2981* *124-4236* 2 124-3040 124-3440 124-3640 124-3840 *124-4040* * NO SLOT ON THESE SIZES * 167 E&G Terminal Corp. SELF DRILLING SCREWS HEX WASHER HEAD SELF DRILLING SCREWS Zinc Plated - Unslotted SIZE HEX DRIVER DRILL POINT SIZE MAX THICK. BAG BOX 142-3016 8-18 x 1/2 1/4 #2 .100 100 500 142-3024 8-18 x 3/4 1/4 #2 .100 100 500 142-3032 8-18 x 1 1/4 #2 .100 100 500 142-3036 8-18 x 1-1/2 1/4 #2 .100 100 500 142-3416 10-16 x 1/2 5/16 #2 .100 100 500 142-3424 10-16 x 3/4 5/16 #3 .175 100 500 142-3432 10-16 x 1 5/16 #3 .175 100 500 142-3434 10-16 x 1-1/4 5/16 #3 .175 100 500 142-3436 10-16 x 1-1/2 5/16 #3 .175 100 500 142-3440 10-16 x 2 5/16 #3 .175 100 500 142-3624 12-14 x 3/4 5/16 #3 .210 50 250 142-3632 12-14 x 1 5/16 #3 .210 50 250 142-3636 12-14 x 1-1/2 5/16 #3 .210 50 250 142-3824 1/4-14 x 3/4 3/8 #3 .250 50 250 142-3832 1/4-14 x 1 3/8 #3 .250 50 250 142-3834 1/4-14 x 1-1/4 3/8 #3 .250 50 250 142-3836 1/4-14 x 1-1/2 3/8 #3 .250 50 250 142-3840 1/4-14 x 2 3/8 #3 .250 50 250 142-3844 1/4-14 x 3 3/8 #3 .250 50 250 BONDED SEALING WASHERS Neoprene Backed Steel Washers - Zinc Plated 075-34 3/16 (10) 100 075-36 #12 100 075-38 1/4 100 075-40 5/16 100 075-42 3/8 100 PHILLIPS PAN HEAD SELF DRILLING SCREWS Zinc Plated SIZE DRIVER SIZE DRILL POINT SIZE MAX THICK. BAG BOX 143-3016 8-18 x 1/2 #2 #2 .100" 100 500 143-3024 8-18 x 3/4 #2 #2 .100" 100 500 143-3032 8-18 x 1 #2 #2 .100" 100 500 143-3036 8-18 x 1-1/2 #2 #2 .100” 100 500 143-3424 10-16 x 3/4 #2 #3 .175" 100 500 143-3432 10-16 x 1 #2 #3 .175" 100 500 BUTTON HEAD TAMPERPROOF MACHINE SCREWS HEX DRIVE WITH PIN - STAINLESS STEEL SIZE 1/2 093-2616211 093-3016211 093-3416211 093-3516211 093-3816211 3/4 093-2624211 093-3024211 093-3424211 093-3524211 093-3824211 1 093-2632211 093-3032211 093-3432211 093-3532211 093-3832211 1-1/2 093-3036211 093-3436211 093-3536211 093-3836211 2 093-3840211 TAMPERPROOF HEX BITS 1/4” HEX SHANK 1” LONG DRIVER SIZE 094-0932 3/32 094-1252 1/8 094-1402 9/64 094-1562 5/32 094-1872 3/16 094-2182 7/32 094-3152 5/16 TAMPERPROOF HEX KEYS 094-0931 3/32 094-1251 1/8 094-1401 9/64 094-1561 5/32 094-1871 3/16 094-2181 7/32 SPANNER BITS 1" LONG 094-62 #6 094-82 #8 094-102 #10 TORX BITS 1/4" HEX SHANK 094-T152 T-15 094-T202 T-20 094-T252 T-25 094-T272 T-27 094-T302 T-30 094-T402 T-40 ONE WAY REMOVAL TOOLS FOR SCREW 094-410 6-8 094-510 8-10 094-610 12-14 SCREWDRIVER 094-1563 5/32" TAMPERPROOF FASTENERS AND TOOLS 169 E&G Terminal Corp. GRADE 2 THREADED ROD COARSE THREAD Zinc Plated 3 FT Sections DIAMETER & thread pitch STD PKG 150-2680 6-32 50 150-3080 8-32 50 150-3480 10-24 50 150-3680 12-24 50 150-3880 1/4-20 50 150-4080 5/16-18 35 150-4280 3/8-16 25 150-4480 7/16-14 17 150-4680 1/2-13 12 150-4880 9/16-12 10 150-5080 5/8-11 8 150-5280 3/4-10 5 150-5480 7/8-9 4 150-5680 1-8 2 150-5880 1-1/8-7 1 150-6080 1-1/4-7 1 150-6480 1-1/2-6 1 150-3580 10-32 50 150-3980 1/4-28 50 150-4180 5/16-24 35 150-4380 3/8-24 25 150-4580 7/16-20 17 150-4780 1/2-20 12 150-4980 9/16-18 10 150-5180 5/8-18 8 150-5380 3/4-16 5 150-5580 7/8-14 4 150-5780 1-14 2 B-7 THREADED ROD • 4140 alloy steel ASTM-A-193 • Heated Treated • Plain Finish • 3 Ft s • 125M Psi Tensile Strength thread pitch 152-3880 1/4-20 152-4080 5/16-18 152-4280 3/8-16 152-4480 7/16-14 152-4680 1/2-13 152-4880 9/16-12 152-5080 5/8-11 152-5280 3/4-10 152-5480 7/8-9 152-5680 1-8 152-5880 1-1/8-7 152-6080 1-1/4-7 152-3980 1/4-28 152-4180 5/16-24 152-4380 3/8-24 152-4580 7/16-20 152-4780 1/2-20 152-4980 9/16-18 152-5180 5/8-18 152-5380 3/4-16 152-5580 7/8-14 152-5780 1-14 152-5980 1-1/8-12 152-6180 1-1/4-12
